Overview

Virtual Machine Scheduling Policy (VM Scheduling Policy): A VM scheduling policy is a resource orchestration policy based on which virtual machines are assigned to hosts to achieve the high performance and high availability of businesses.

Related Definitions

The virtual machine scheduling policy includes the following core components:

• Scheduling Policy: ZSvirt provides four types of scheduling policies, each supporting two execution mechanisms:
  • Policy Type: Supports four types of scheduling policies: VM Exclusive from Each Other, VM Affinitive to Each Other, VMs Exclusive from Hosts, and VMs Affinitive to Hosts. By combining different execution mechanisms, virtual machine scheduling is achieved:
    • VM Exclusive from Each Other: Virtual machines in the same VM scheduling group should not/must not run on the same host.
    • VM Affinitive to Each Other: Virtual machines in the same VM scheduling group should/must run on the same host.
    • VMs Exclusive from Hosts: Given any one of the virtual machines in a VM scheduling group and any one of the hosts in a host scheduling group, the virtual machine should not/must not run the host.
    • VMs Affinitive to Hosts: Given any one of the virtual machines in a VM scheduling group and any one of the hosts in a host scheduling group, the virtual machine should/must run the host.
  • Execution Mechanism: Supports two mechanisms: Hard and Soft:
    • Hard: Virtual machines are forcibly assigned hosts based on the associated VM scheduling policies. For example, if you associate the VM Exclusive from Each Other policy with a VM scheduling group and select the Hard mechanism for the policy, any two of the virtual machines in the scheduling group are not allowed to run on the same host. If no host is available to be scheduled based on the policy for a virtual machine, the virtual machine will end up failure upon startup.
    • Soft: Virtual machines are primarily assigned hosts based on the associated VM scheduling policies. For example, if you associate the VM Exclusive from Each Other policy with a VM scheduling group and select the Soft mechanism for the policy, any two of the virtual machines in the scheduling group will primarily not run on the same host. If no host is available to be scheduled based on the policy for a virtual machine, the virtual machine will attempt to run on a host that does not satisfy the policy.
• VM Scheduling Group: The basic unit for binding virtual machines to scheduling policies.
  • A virtual machine can only join one virtual machine scheduling group. Once joined, the virtual machine will be assigned to a host according to the scheduling policy associated with the scheduling group.
  • A virtual machine scheduling group can be bound to one or more scheduling policies.
  • A scheduling policy can be bound to one virtual machine scheduling group.
  • Deleting a virtual machine scheduling group will also delete the associated virtual machine scheduling policies.
• Host Scheduling Group: The basic unit for binding hosts to scheduling policies, used only when selecting the virtual machine mutually exclusive hosts or virtual machine host affinity scheduling policies.
  • A host can only join one host scheduling group. Once joined, the host will be scheduled according to the scheduling policy associated with the scheduling group.
  • A host scheduling group can be bound to one or more scheduling policies.
  • A scheduling policy can be bound to one host scheduling group.
  • Deleting a host scheduling group will also delete the associated virtual machine scheduling policies.

Function Principles

ZSvirt supports adding a virtual machine to a virtual machine scheduling group and binding scheduling policies to the group to achieve virtual machine scheduling.

• If a mutually exclusive virtual machine or aggregated virtual machine policy is bound, no host scheduling group needs to be specified, and the virtual machine is assigned to a host according to the policy and its execution mechanism.
• If a virtual machine host affinity or virtual machine mutually exclusive host scheduling policy is bound, the corresponding host scheduling group must be specified, and the virtual machine is assigned to a host according to the policy and its execution mechanism.

The following explains the working principles of the four types of scheduling policies through four scenarios:

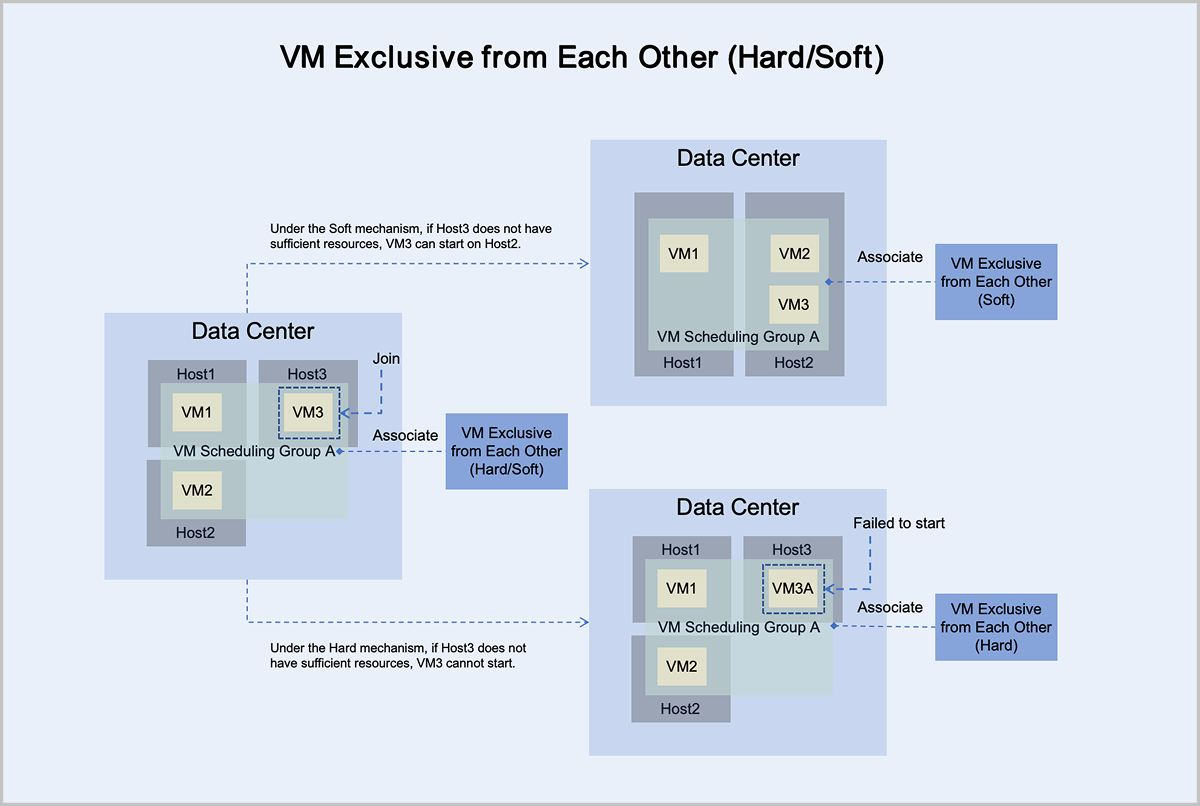

Scenario 1: Assume there are three hosts Host1, Host2, and Host3 in the data center. Virtual machine scheduling group A is bound to the VM Exclusive from Each Other scheduling policy, and virtual machines VM1 and VM2 have joined this scheduling group and are running on hosts Host1 and Host2, respectively. At this point, virtual machine VM3 joins this scheduling group. Under different execution mechanisms, the behavior of virtual machine VM3 is as follows:

• Under the mandatory mechanism, virtual machine VM3 adheres to the principle of mandatory mutual exclusion with other virtual machines in the group:
  • If Host3 has sufficient resources, it can normally start and run on Host3.
  • If Host3 does not have sufficient resources, it cannot start on Host3.
• Under the preferred mechanism, virtual machine VM3 adheres to the principle of trying to mutually exclude other virtual machines in the group, prioritizing starting on Host3:
  • If Host3 has sufficient resources, it can normally start and run on Host3.
  • If Host3 does not have sufficient resources, VM3 can attempt to start on another host with sufficient resources. In this scenario, VM3 starts and runs on Host2.

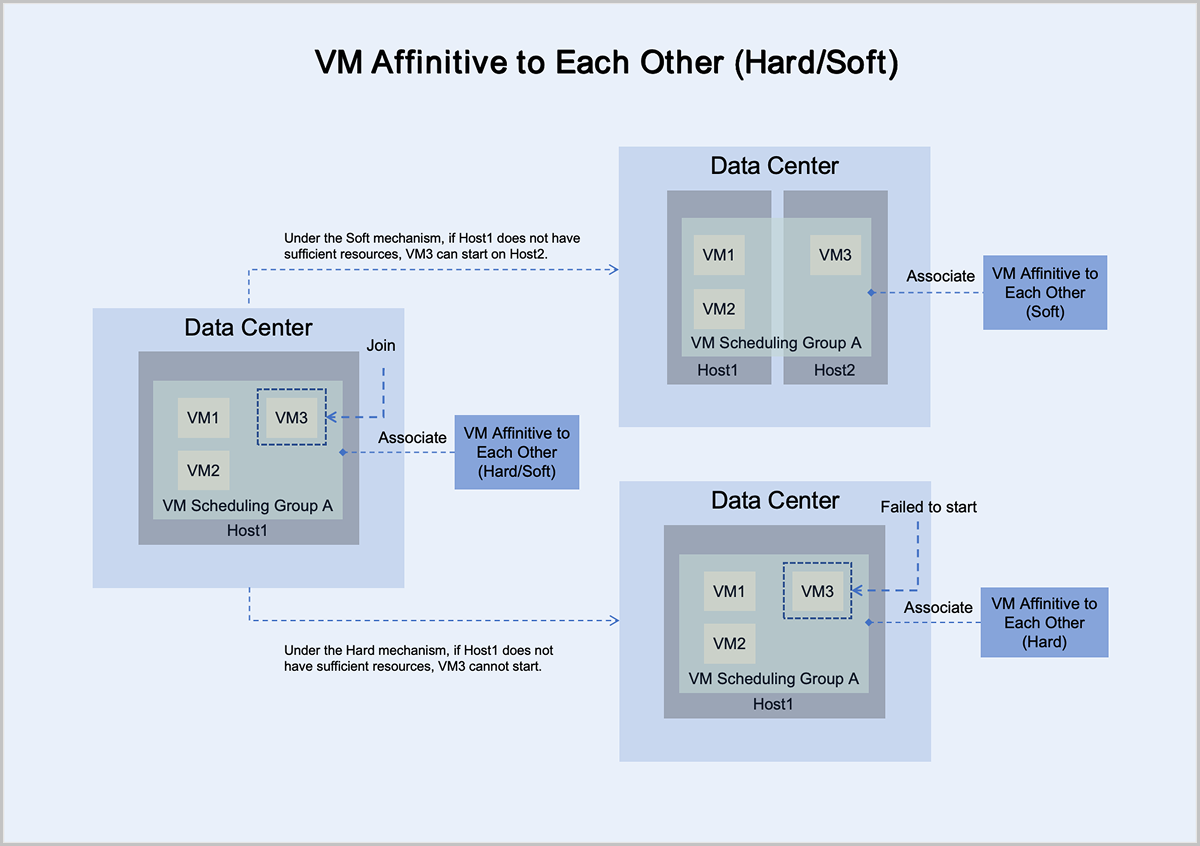

Scenario 2: Assume there are two hosts Host1 and Host2 in the data center. Virtual machine scheduling group A is bound to the VM Affinitive to Each Other scheduling policy, and virtual machines VM1 and VM2 have joined this scheduling group and are running on host Host1. At this point, virtual machine VM3 joins this scheduling group. Under different execution mechanisms, the behavior of virtual machine VM3 is as follows:

• Under the mandatory mechanism, virtual machine VM3 adheres to the principle of mandatory aggregation with other virtual machines in the group:
  • If Host1 has sufficient resources, it can normally start and run on Host1.
  • If Host1 does not have sufficient resources, it cannot start on Host1.
• Under the preferred mechanism, virtual machine VM3 adheres to the principle of trying to aggregate with other virtual machines in the group, prioritizing starting on Host1:
  • If Host1 has sufficient resources, it can normally start and run on Host1.
  • If Host1 does not have sufficient resources, VM3 can attempt to start on another host with sufficient resources. In this scenario, VM3 starts and runs on Host2.

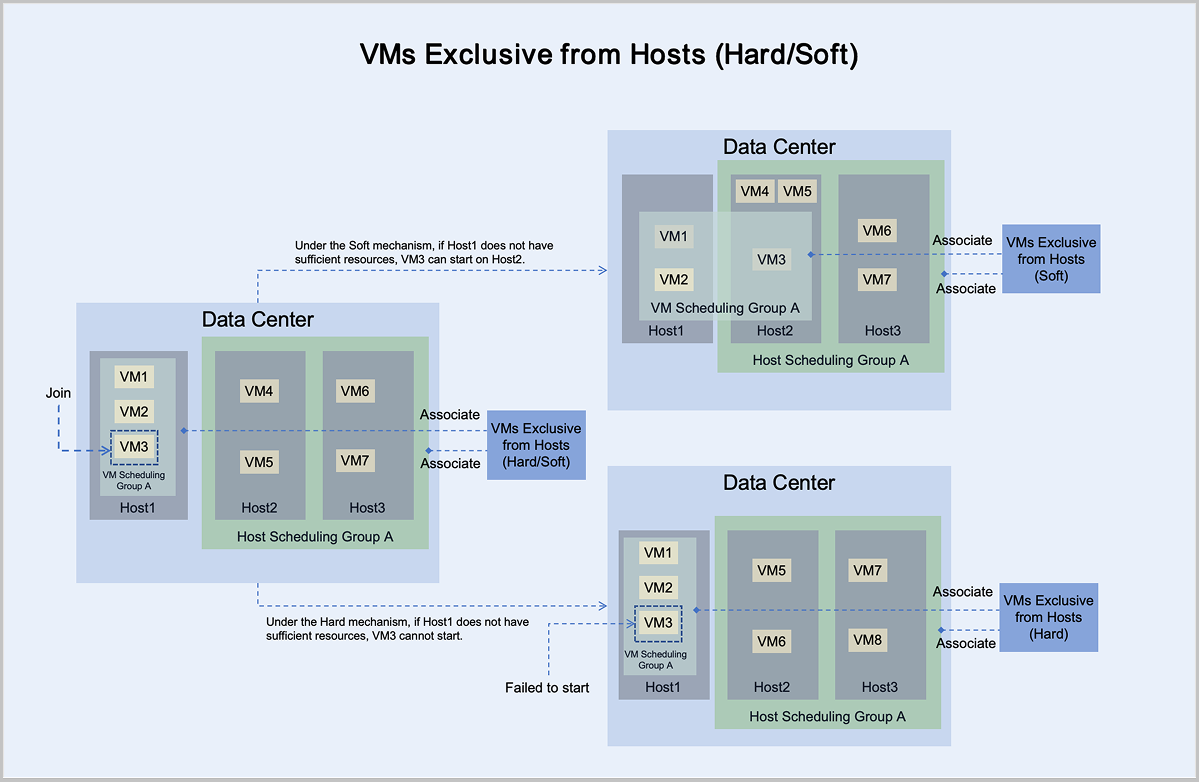

Scenario 3: Assume there are three hosts Host1, Host2, and Host3 in the data center. Virtual machine scheduling group A is bound to the VMs Exclusive from Hosts scheduling policy, and virtual machines VM1 and VM2 have joined this scheduling group and are running on host Host1. Host scheduling group A is also bound to the VMs Exclusive from Hosts scheduling policy, and hosts Host2 and Host3 have joined this scheduling group, each running two virtual machines. At this point, virtual machine VM3 joins virtual machine scheduling group A. Under different execution mechanisms, the behavior of virtual machine VM3 is as follows:

• Under the mandatory mechanism, virtual machine VM3 adheres to the principle of mandatory mutual exclusion with hosts in host scheduling group A:
  • If Host1 has sufficient resources, it can normally start and run on Host1.
  • If Host1 does not have sufficient resources, it cannot start on Host1.
• Under the preferred mechanism, virtual machine VM3 adheres to the principle of trying to mutually exclude hosts in host scheduling group A, prioritizing starting on Host1:
  • If Host1 has sufficient resources, it can normally start and run on Host1.
  • If Host1 does not have sufficient resources, VM3 can attempt to start on another host with sufficient resources. In this scenario, VM3 starts and runs on Host2.

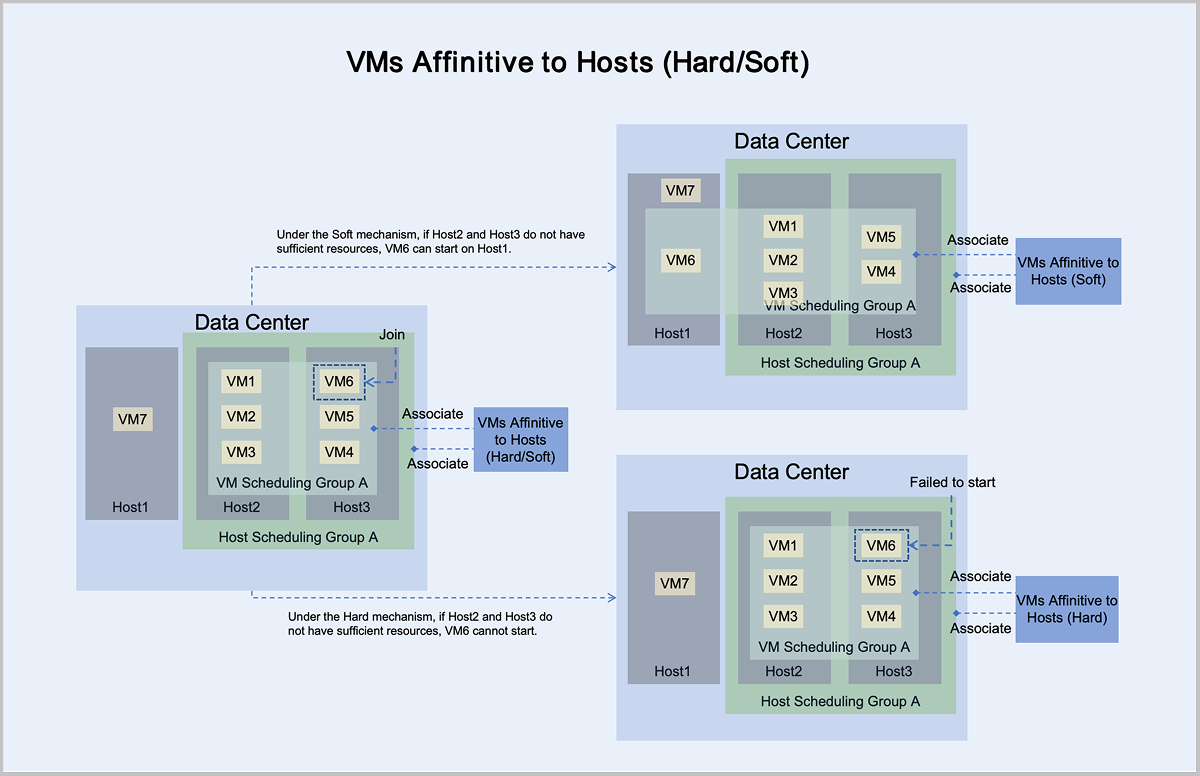

Scenario 4: Assume there are three hosts Host1, Host2, and Host3 in the data center. Virtual machine scheduling group A is bound to the VMs Affinitive to Hosts scheduling policy, and virtual machines VM1 through VM5 have joined this scheduling group and are running on hosts Host2 and Host3. Host scheduling group A is also bound to the VMs Affinitive to Hosts scheduling policy, and hosts Host2 and Host3 have joined this scheduling group. At this point, virtual machine VM6 joins virtual machine scheduling group A. Under different execution mechanisms, the behavior of virtual machine VM6 is as follows:

• Under the mandatory mechanism, virtual machine VM6 adheres to the principle of mandatory aggregation with hosts in host scheduling group A:
  • If Host2 or Host3 has sufficient resources, it can normally start and run on Host2 or Host3.
  • If Host2 and Host3 do not have sufficient resources, it cannot start on Host2 or Host3.
• Under the preferred mechanism, virtual machine VM6 adheres to the principle of trying to aggregate with hosts in host scheduling group A, prioritizing starting on Host2 or Host3:
  • If Host2 or Host3 has sufficient resources, it can normally start and run on Host2 or Host3.
  • If Host2 and Host3 do not have sufficient resources, VM6 can attempt to start on another host with sufficient resources. In this scenario, VM6 starts and runs on Host1.

Use Cases

You can use the VM Exclusive from Each Other (Hard/Soft) and VMs Affinitive to Hosts (Hard/Soft) functions in the following scenarios.

• Example use case for the VM Exclusive from Each Other (Hard) policy:

  Two virtual machines hosting primary and backup databases are required to be deployed on different hosts to ensure high availability of the service.

  • For example: Users deploy two virtual machines to host primary and backup MySQL databases, requiring that both virtual machines must be deployed on different hosts to reduce the risk of service downtime. Since deployment is automated, users cannot predict in advance which hosts have available resources. Using the mutually exclusive virtual machine (mandatory) policy, two different hosts can be selected to run these two virtual machines, ensuring high availability of the service.

• Example use case for the VM Exclusive from Each Other (Soft) policy:

  Hadoop nodes with different roles are preferably deployed on different hosts to improve overall system performance.

  • For example: Users deploy a Hadoop system, for which nodes with different roles such as namenode, datanode, jobtracker, and tasktracker, cannot be predicted in advance regarding the total number of nodes. However, deploying them on different hosts improves efficiency. Using the mutually exclusive virtual machine (preferred) policy, the Hadoop cluster can be deployed across different hosts as much as possible, distributing IO pressure and improving overall system performance.

• Example use case for the VMs Affinitive to Hosts (Hard) policy:

  Business virtual machines need to be deployed on hosts with a specific CPU frequency to ensure service stability.

  • For example: Users deploy four virtual machines to run critical services, requiring hosts with very high CPU frequencies. Since there are few hosts that meet the CPU frequency requirement, the virtual machines must run on these specific hosts. In this case, the virtual machine host affinity (mandatory) policy can be used to make the virtual machines run on the target hosts, ensuring service stability.

• Example use case for the VMs Affinitive to Hosts (Soft) policy:

  Different business virtual machines preferably run on hosts located in the same rack to ensure efficient inter-service communication.

  • For example: Four virtual machines run different services, which require frequent communication between them, and the hosts need to be as close as possible, such as in the same rack, to minimize communication latency. In this case, the virtual machine host affinity (preferred) policy can be used to make the virtual machines run on the target hosts as much as possible, ensuring efficient inter-service communication.

Advantages

The virtual machine scheduling policies offer the following advantages:

• Comprehensive & Flexible:
  • Provides 4 types of scheduling policies and 2 execution mechanisms, defining mutual exclusion/affinity relationships between virtual machines and between virtual machines and hosts. These scheduling policies can be flexibly combined to meet all mainstream business scenario requirements.
  • Supports binding/unbinding multiple virtual machines to/from one or more scheduling policies through a virtual machine scheduling group, making the process simple and efficient.
  • Displays virtual machine scheduling status intuitively and provides quick conflict resolution operations, allowing users to keep track of business scheduling dynamics in real-time and make adjustments promptly.
• Powerful & Reliable:
  • Supports mutual exclusion/affinity between the same/different services, achieving service isolation/efficient intercommunication, ensuring high performance and reliability of services.
  • Allows flexible configuration of virtual machine business fault domains through host scheduling groups, supporting single host deployments, batch host deployments within a single cluster, and cross-cluster host deployments. This avoids single points of failure, ensures business stability, and improves physical resource utilization.
